MODEL DG90(강력형) F012060 F012090 F012120 F012150 F024060 F024090 F024120 F024150 Rated Voltage
V 12 24 Rated Output
W 60 90 120 150 60 90 120 150 Rated Current
A 7.0 10.6 14.1 17.6 3.5 5.3 7.0 8.8 Rated Speed
r/min 15~1000 Rated Torque
kgf-cm 4.6~200 7.0~200 9.5~200 11.9~200 4.6~200 7.0~200 9.5~200 11.9~200 Weight
kg 3.1 3.5 4.2 4.5 3.1 3.5 4.2 4.5
MODEL DG90(강력형) F090060 F090090 F090120 F090150 F180060 F180090 F180120 F180150 Rated Voltage
V 90 180 Rated Output
W 60 90 120 150 60 90 120 150 Rated Current
A 0.9 1.4 1.9 2.3 0.5 0.7 0.9 1.2 Rated Speed
r/min 15~1000 Rated Torque
kgf-cm 4.6~200 7.0~200 9.5~200 11.9~200 4.6~200 7.0~200 9.5~200 11.9~200 Weight
kg 3.1 3.5 4.3 4.4 3.1 3.5 4.2 4.3

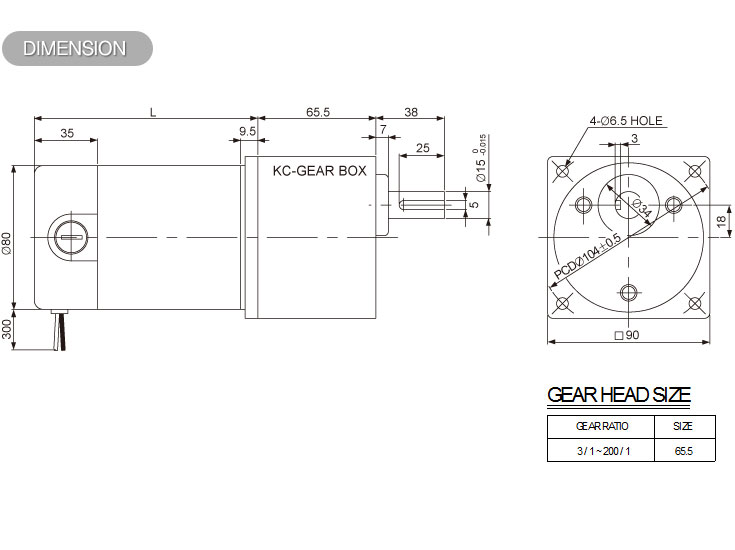

L MODEL 141.5
F012060/ /F012090 / F024060 / F024090 / F090060 / F090090 / F180060 / F180090 159.5
F012120 / F024120 / F024150 / F090120 / F090150 / F180120 / F180150 / F180200 184.5
F012150 / F090200 / F180250
