Basic Specifications Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless Amplifier
Performance Specifications
Model Unit SWL-DM10T SWL-DL10T SWL-DL10S Continuous Force [ N ] 42.8 102.2 93.1 Max. Force [ N ] 128.4 306.6 279.3 Continuous Current [ Arms ] 1.96 1.8 3.5 Max. Current [ Arms ] 5.9 5.3 10.5 Electrical Power [ W ] 370.2 340.0 661.0 Power Loss [ W ] 37.4 69.2 35.0 Resistance (Line toLine) [ Ω ] 6.50 14.77 1.90 Inductance (Line toLine) [ mH ] 5.42 72.66 4.50 Force Constant (Kf) [ N/Arms ] 21.84 56.78 26.60 Back EMF Constant (Ke) [ V/(m/sec)] 7.28 19.28 8.90 Motor Constant [ N/W^½ ] 6.7 16.6 10.9 Electrical Time Constant [ msec ] 0.83 4.92 2.37 POLE Pitch [ mm ] 30.0 42.0 42.0 Normal Force [ N ] 0.0 0.0 0.0

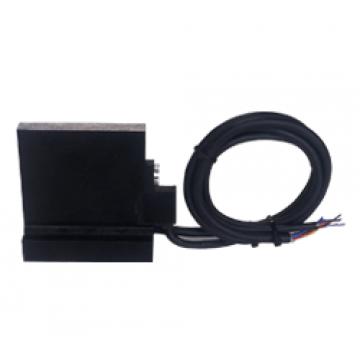

Mover
COIL L N F Weight(kg) SWL-DM10T 77 - - 0.40 SWL-DL10T 104 - - 0.67 SWL-DL10S 104 - - 0.70 Stator
MAGNET Z M G Weight(kg) SWL-DM240 240 3 4 11.2 SWL-DM600 600 9 10 SWL-DL336 336 3 4 18.6 SWL-DL588 588 6 7
