Basic Specifications Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless Amplifier
Performance Specifications
Model Unit SWL-PMI10C SWL-PMI20C SWL-PMI30C SWL-PMI40C Continuous Force [ N ] 18.8 38 56.8 75.2 Max. Force [ N ] 56.4 114.0 170.5 225.7 Continuous Current [ Arms ] 1.3 1.3 1.3 1.3 Max. Current [ Arms ] 3.9 3.9 3.9 3.9 Electrical Power [ W ] 245.5 245.5 245.5 245.5 Power Loss [ W ] 11.8 23.3 34.9 45.9 Resistance (Line toLine) [ Ω ] 4.67 9.18 13.77 18.10 Inductance (Line toLine) [ mH ] 11.20 22.77 34.20 45.49 Force Constant (Kf) [ N/Arms ] 14.46 29.23 43.69 57.85 Back EMF Constant (Ke) [ V/(m/sec)] 4.94 9.91 14.74 19.44 Motor Constant [ N/W^½ ] 3.6 7.3 10.9 14.4 Electrical Time Constant [ msec ] 2.40 2.48 2.48 2.51 POLE Pitch [ mm ] 18.0 18.0 18.0 18.0 Normal Force [ N ] 100 200 300 400

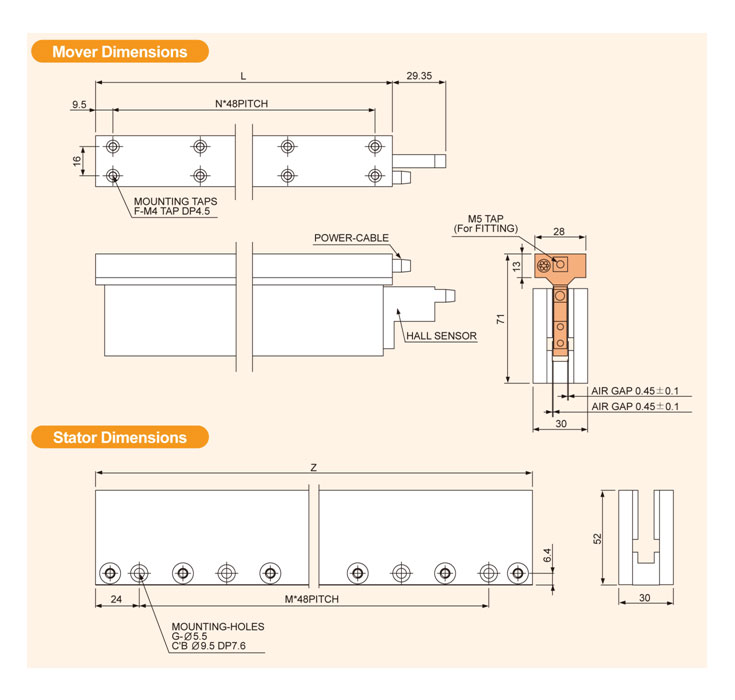

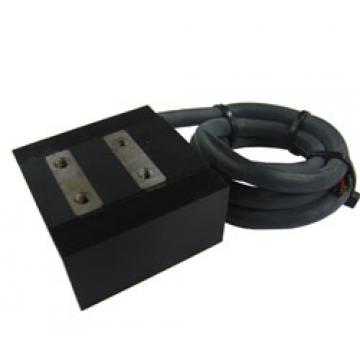

Mover
COIL L N F Weight(kg) SWL-PMI10C 46 1 4 0.22 SWL-PMI20C 82 3 8 0.41 SWL-PMI30C 118 5 12 0.60 SWL-PMI40C 154 7 16 0.76 Stator
MAGNET Z M G Weight(kg) SWL-PMI72 72 1 4 1.7 SWL-PMI108 108 2 6 SWL-PMI144 144 3 8 SWL-PMI180 180 4 10 SWL-PMI216 216 5 12 SWL-PMI252 252 6 14 SWL-PMI288 288 7 16 SWL-PMI324 324 8 18 SWL-PMI360 360 9 20
