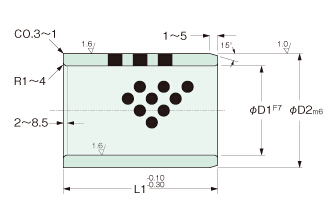

形　式	内径　D1	公差　D1F7	外径　D2	公差　D2m6	全長　L1
Y-50A-202810	20	+0.041 +0.020	28	+0.021 +0.008	10
Y-50A-202812					12
Y-50A-202815					15
Y-50A-202816					16
Y-50A-202819					19
Y-50A-202820					20
Y-50A-202825					25
Y-50A-202830					30
Y-50A-202835					35
Y-50A-202840					40
Y-50A-202850					50
Y-50A-203016			30		16
Y-50A-203020					20
Y-50A-203025					25
Y-50A-203030					30
Y-50A-203035					35
Y-50A-203040					40
Y-50A-253312	25		33	+0.025 +0.009	12
Y-50A-253315					15
Y-50A-253316					16
Y-50A-253320					20
Y-50A-253325					25
Y-50A-253330					30
Y-50A-253335					35
Y-50A-253340					40
Y-50A-253350					50
Y-50A-253360					60
Y-50A-253512			35		12
Y-50A-253515					15
Y-50A-253516					16
Y-50A-253520					20
Y-50A-253525					25
Y-50A-253530					30
Y-50A-253535					35
Y-50A-253540					40
Y-50A-253550					50
Y-50A-303812	30		38		12
Y-50A-303815					15
Y-50A-303820					20
Y-50A-303825					25
Y-50A-303830					30
Y-50A-303835					35
Y-50A-303840					40
Y-50A-303850					50
Y-50A-303860					60
Y-50A-354420	35	+0.050 +0.025	44		20
Y-50A-354425					25
Y-50A-354430					30
Y-50A-354435					35
Y-50A-354440					40
Y-50A-354450					50
Y-50A-354460					60
Y-50A-405020	40		50		20
Y-50A-405025					25
Y-50A-405030					30
Y-50A-405035					35
Y-50A-405040					40
Y-50A-405050					50
Y-50A-405060					60
Y-50A-405070					70
Y-50A-405080					80
Y-50A-506230	50		62	+0.030 +0.011	30
Y-50A-506235					35
Y-50A-506240					40
Y-50A-506250					50
Y-50A-506260					60
Y-50A-506570			65		70
Y-50A-506580					80
Y-50A-607550	60	+0.060 +0.030	75		50
Y-50A-607560					60
Y-50A-607570					70
Y-50A-607580					80
Y-50A-809660	80		96	+0.035 +0.013	60
Y-50A-809670					70
Y-50A-809680					80
Y-50A-10012080	100	+0.071 +0.036	120		80
Y-50A-100120100					100
